| VG-1001 – 4×6 Compact Thermal Barcode Printer | |
| Printer Specifications | |
| Model | VG-1001 |
| Resolution | 203 DPI (8 dots/mm) |
| Print Method | Thermal Transfer / Direct Thermal – Inkless |
| Max. Print Width | 108mm (4.25″) |
| Max. Print Length | 1778mm (70″) |
| Print Speed | Up to 127mm/s (5 ips) |
| Printhead Lifespan | 150 km |
| Memory | 128MB SDRAM / 128MB Flash |
| Interface | USB 2.0 + Bluetooth 5.0 |
| Sensors | Gap / Black Mark / Continuous Media Sensor |
| Media Characteristics | |
| Media Types | Label, Receipt, Tag, Ticket, Continuous – Roll & Fan-fold |
| Media Width | 20mm – 108mm (0.8″ – 4.25″) |
| Media Roll OD | Up to 110mm (4.33″) |
| Core Diameter | 25.4mm (1″) / 38mm (1.5″) |
| Label Thickness | 0.06 – 0.20mm |
| External Support | External Stand / Cardboard Box Support Included |
| Environment Condition | |
| Operating Temp. | 0°C to 40°C (32°F to 104°F) |
| Storage Temp. | -20°C to 60°C (-4°F to 140°F) |
| Operating Humidity | 20% – 85% RH (Non-Condensing) |
| Storage Humidity | 10% – 90% RH (Non-Condensing) |
| Software & Compatibility | |
| Compatible OS | Windows 7/10/11, macOS, Linux, Android, iOS |
| Drivers & SDK | Windows Driver, CUPS Driver, SDK Available |
| Applications | Small Businesses, Retail Shops, Warehouses, Pharmacies, Shipping/Delivery Companies |
| Accessories / Warranty / Physical | |
| Standard Accessories | 4″x6″ Label Roll, USB 2.0 Cable, Bluetooth Module, 24V/2.5A Power Adapter, Media Holder/Spindle |
| Certifications | CE, FCC, RoHS, BQB |
| Dimensions | 200 x 160 x 150 mm (W x D x H) |
| Weight | 1.2 kg (2.65 lbs) |
| Warranty | 1-Year Standard Warranty |
Thermal Label Printer

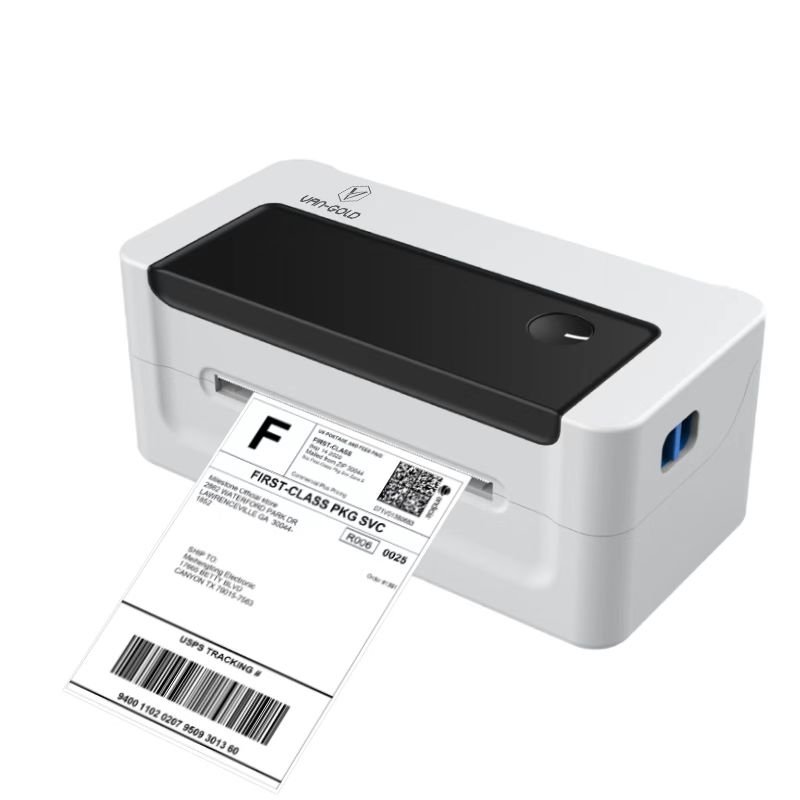

The Van-Gold VG-1001 is a compact thermal label printer designed for printing 4×6 inch labels and barcodes. Specifications and Feature
driver download ↵
• Resolution: Maximum resolution of 203 dots per inch (DPI).
• Connectivity: Supports USB and Bluetooth interfaces for connecting to computers, smartphones, and tablets.
• Printing Technology: Ink-free thermal printing, with a print head lifespan of up to 150 km of continuous printing.
• Design and Usage: Supports various label sizes and widths; handles both roll and fan-fold labels; includes an external holder or cardboard support stand.
• Applications: Ideal for small businesses, retail stores, warehouses, pharmacies, and shipping and delivery companies.
