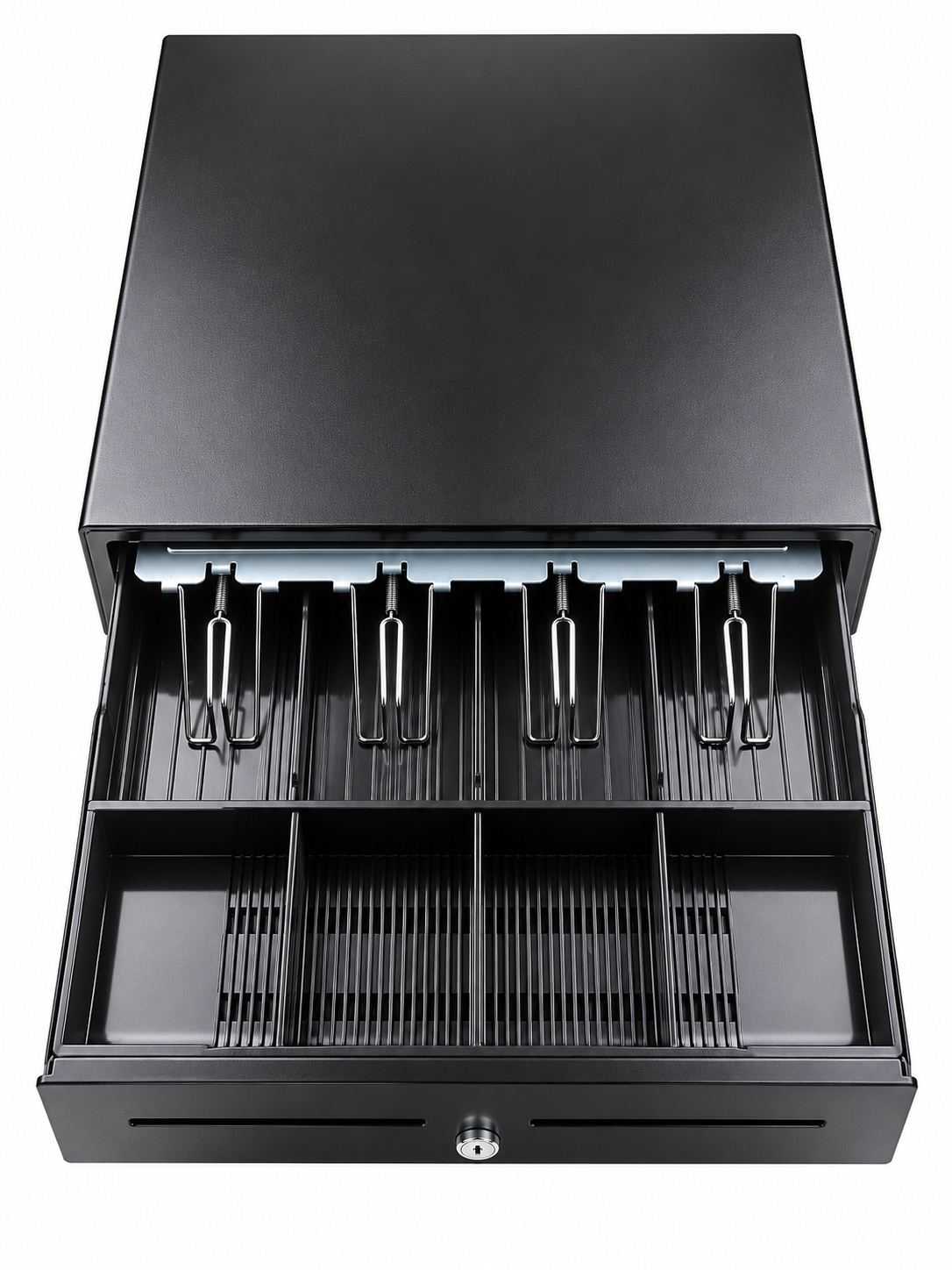

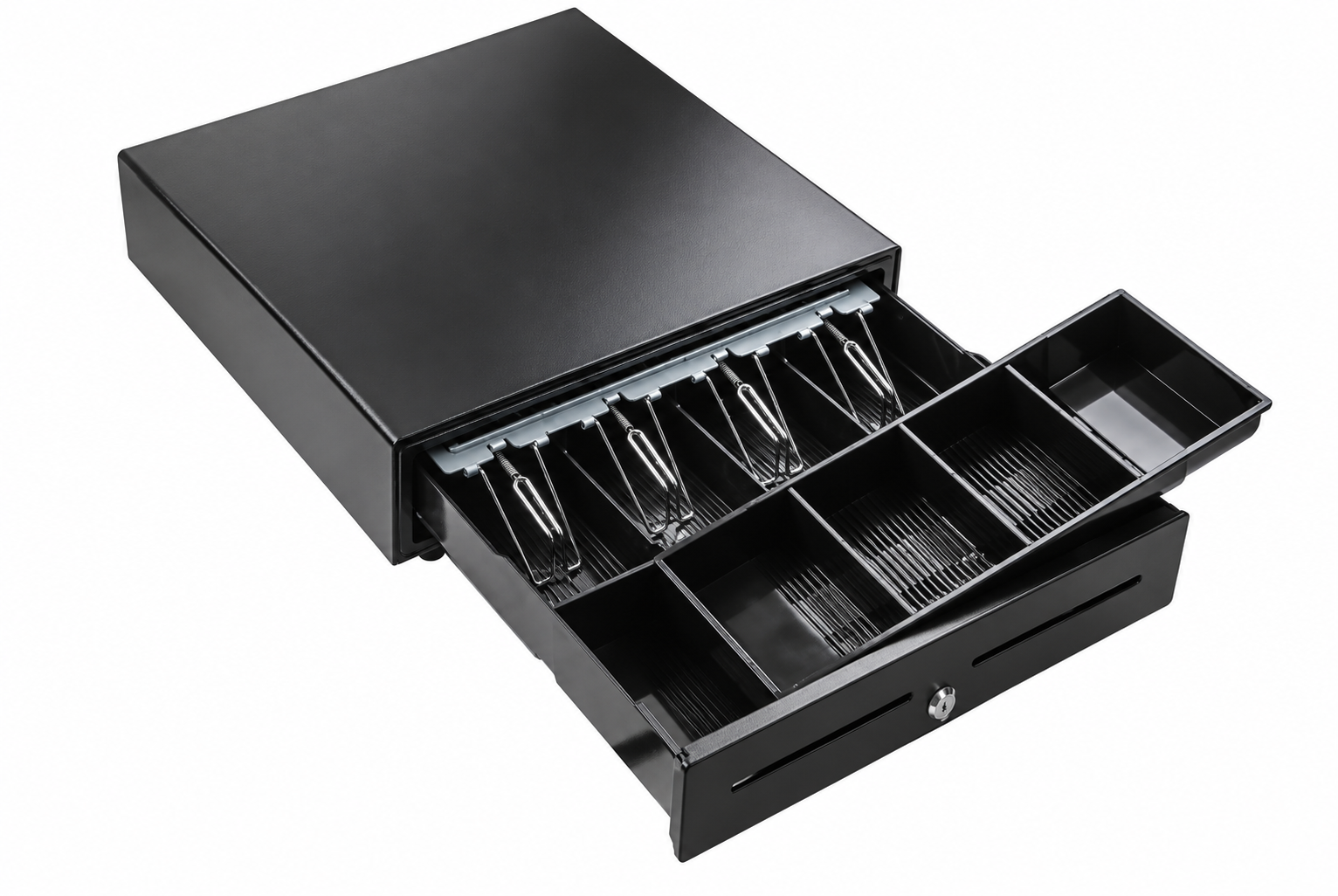

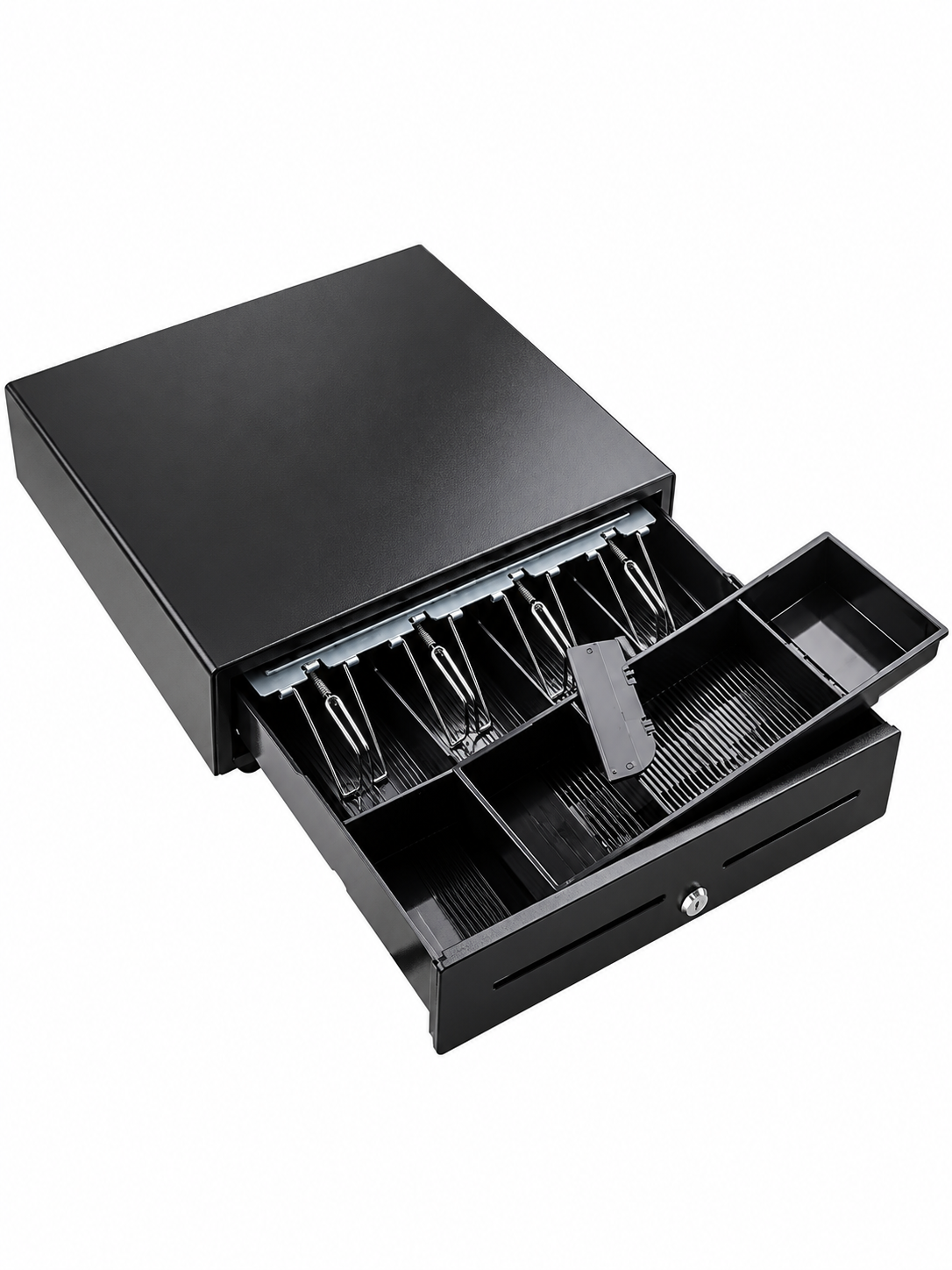

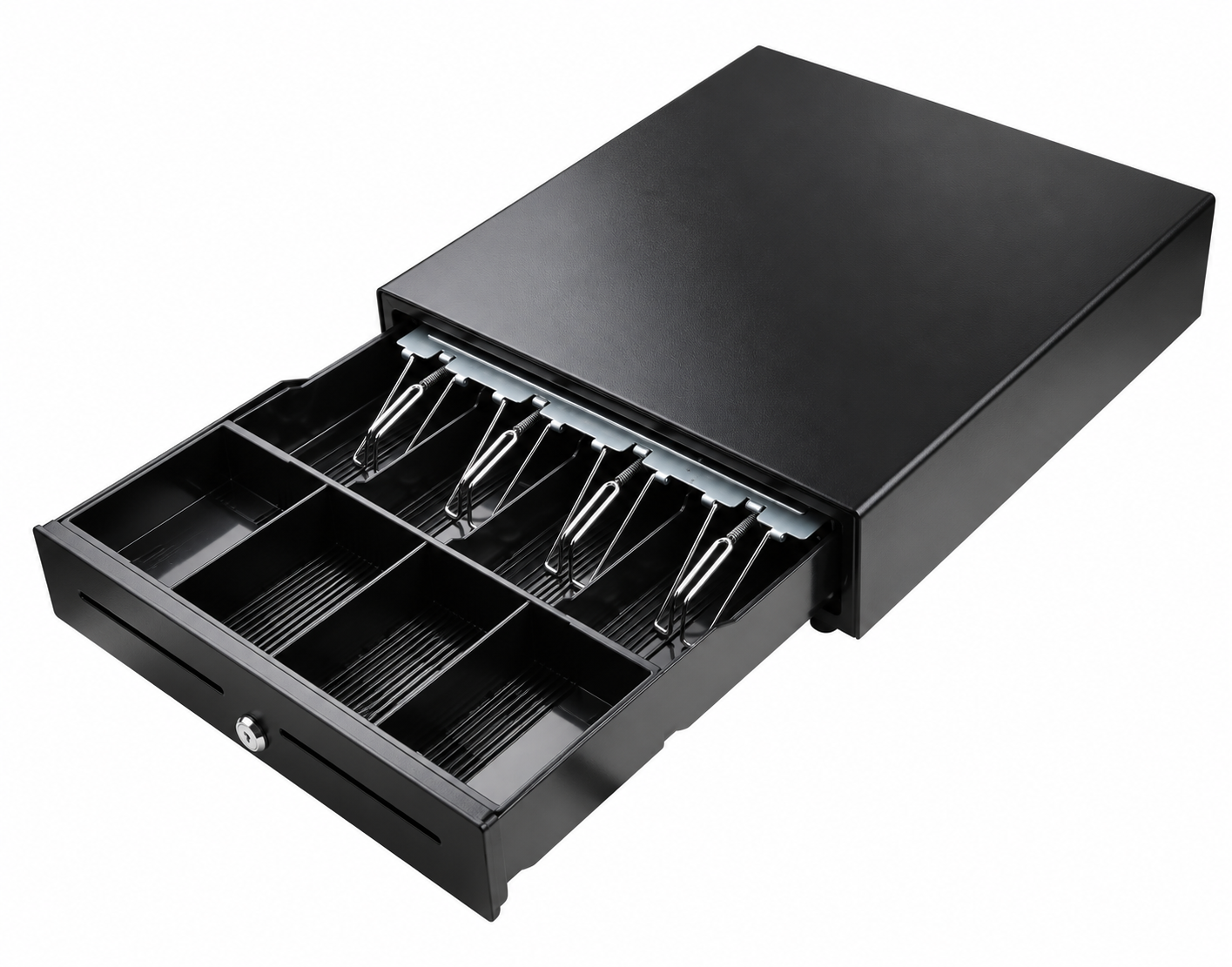

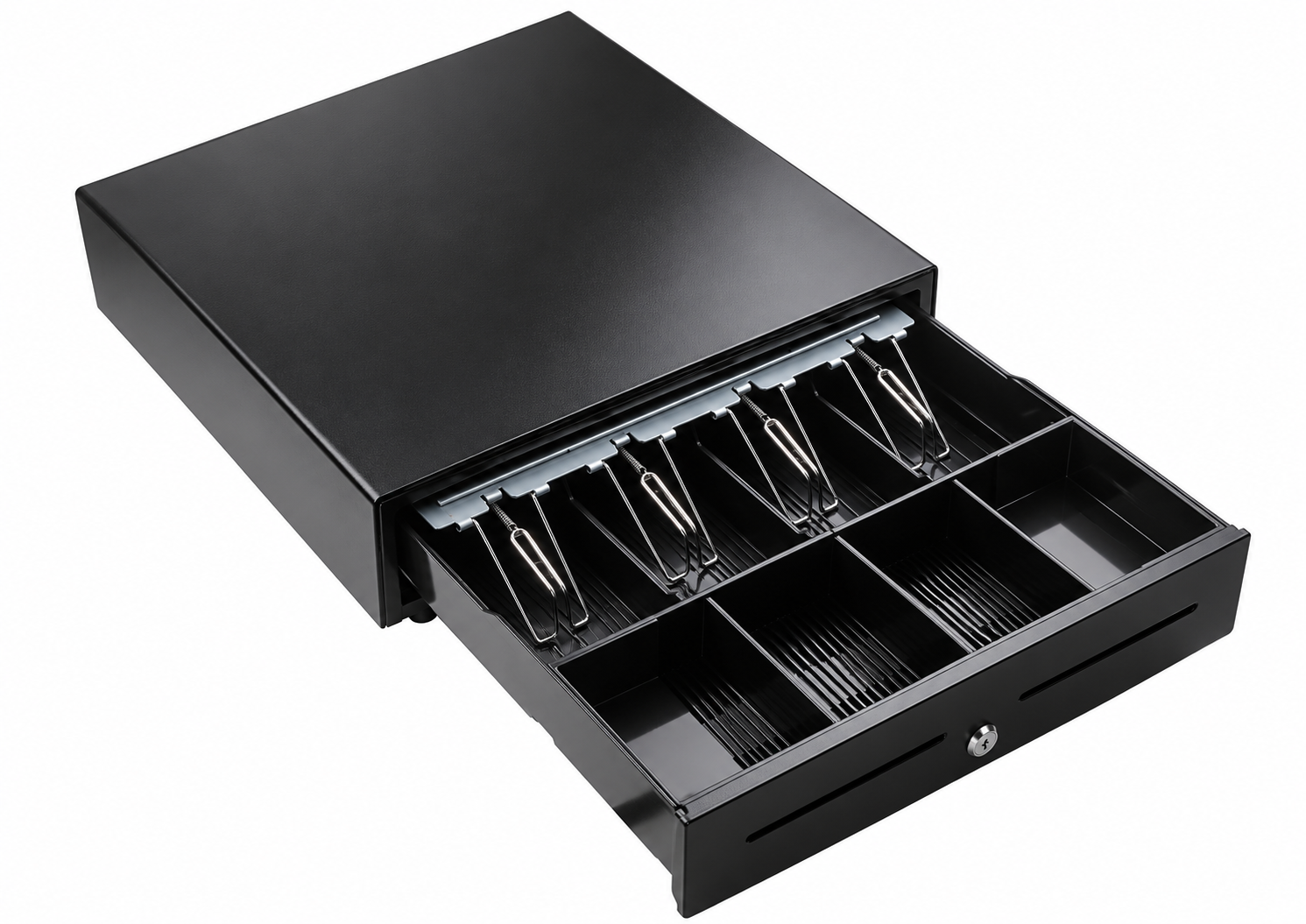

The VG-405A POS cash drawer is a durable, high-efficiency unit measuring 405 x 420 x 100 mm.

📊 Specifications and Features

• Dimensions: 405 mm (Width) x 420 mm (Depth) x 100 mm (Height)
• Construction: Cold-rolled galvanized steel with a textured powder-coated finish
• Internal Tray Design: Removable and adjustable plastic insert (configurable as 4 bill/8 coin slots or 5 bill/4 coin slots) featuring metal bill hold-down clips
• Security: 3-position lock (manual open, electronic release, and locked) plus two front slots for inserting documents or checks
• Interface: RJ11/RJ12 connection (printer-controlled) or optional USB connection (12V / 24V)

🔌 Setup and Operation

• Electronic Mode: The RJ11/RJ12 cable connects directly to the cash drawer port of a compatible thermal receipt printer or POS terminal; the drawer opens automatically upon receiving a print command.
• Manual Mode: The front key is turned to manually open or close the drawer.
• Emergency Release: The drawer can be opened using a concealed lever (located underneath or inside) in the event of a power outage or lost keys.
